Creating your own Window Wall Vent Plate for your Ecoflow Wave 2 or 3 with ABS Plastic Sheet

wallmount edited

We often times have requests for an entire window frame venting wall plate, which we are not able to create/sell due to how customized each one can be. However we created our Customer Stories to help show how others are using & installing our products.

One of the more popular materials for creating a replacement window for mounting our Ecoflow Wave Vents is a material called ABS. It’s super strong, providing plenty of protection in harsh conditions & is easy to work with. You can order it sheets as large as needed. We recommend the 1/4th in Thickness.

We recommend ordering through Duco USA off of Amazon. They have a Custom Cut to Size feature. Be sure to pay attention to their 1/8th cut tolerance allowance when you are measuring. If you need super precise cuts.

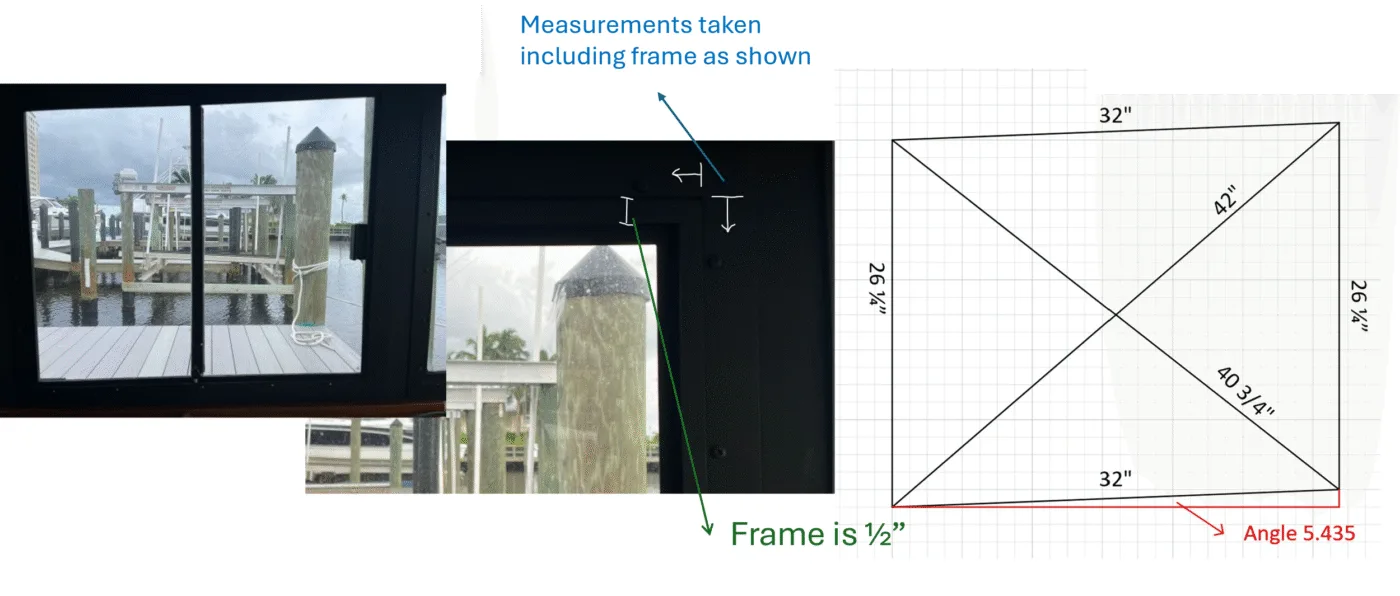

The only negative with ordering through Duco is you’re still going to need to cut out the holes for the Rain Vents, or make cuts for an un-even window like below. This will require you to use a Drill, and a pair of tin snips. *Or if you know someone with a CNC mill, they may be able do all this with that machine also!

You can also use a service such as Send Cut Send, to create a template and upload to them, to have cut out.

RIVETS OR BOLTS FOR MOUNTING
For mounting our vents, many customers use stainless steel bolts. If you have the time, and want a more professional install look. Rivets are a great option as well, but I would say 95% use stainless steel bolts.

unnamed 1

We’ve helped customers with all types of installs, and each one seems to have it’s own unique install needs. Here are a few different examples to help give you an idea for your own project/install need.

The below photo shows our Wall Plate Mounts with Filter & Cap. These wall plates offer the lowest profile install when bulk is not needed. This was used in a Teardrop Camper to mount their wave 2 from the outside in.

wallmount edited
IMG 2921

This Sprinter Van used our Square shaped Outside Vents for the lower profile install.

2 1
1 1

Campinawe campers reached out to use with a need to install through a window with a grill/filter screen already installed. They used our Wall Plate Mounts with no filters.

IMG 9172

The below customer used some White Corrugated Plastic from lowes instead of ABS. It works just as well, just isn’t as tough as ABS. They used our Outside Rain Vents which have a lip to help prevent rain from entering.

s l1600 2 2
s l1600

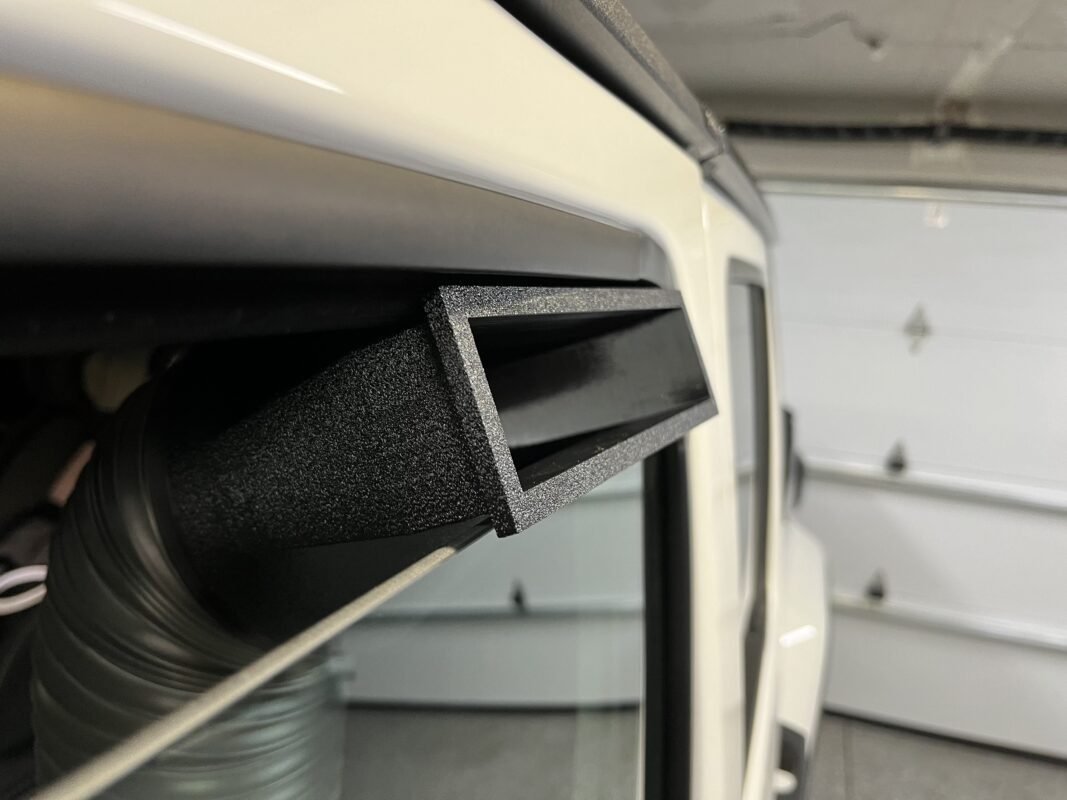

One other option if you do not want to create a vent wall mount, is to use our Ecoflow Square Ducts to slide into the side of a window only needing about 4 inches of clearance.

IMG 3178
